| Capacity | 500- 750 Kg |
| Material | Aluminum |
| Ingress Protection | IP65 |
| Application | Platform Scale |
| Model | CZL-646B |
| Features | Hermetically Sealed |
| Output Sensitivity(FS) | 2.0 +/- 0.1 mV/V |
| Creep Error (30 minutes) | +/- 0.025 |
| Temperature Effect on Zero | +/- 0.03 |
| Temperature Effect on Output | +/- 0.03 |
| Zero balance | +/- 1% FS |
| Maximum Safe Overload | 120% FS |
| Ultimate Safe Overload | 180% FS |
| Recommended Excitation Voltage | 5 to 12V DC |
| Input Resistance | 400+/-10 Ohms |
| Output Resistance | 350+/-5 Ohms |
| Insulation resistance at 50V DC | >= 5000 M Ohm |
| Compensated Temperature Range | -10 to +40 Deg C |
| Cable Length | 3 Meter |
| HSN CODE | 8423 OR 9031 |
Established in the year 2005, we “Sunrise Technology” are engaged in Manufacturing CZL-646 B LOADCELLs.

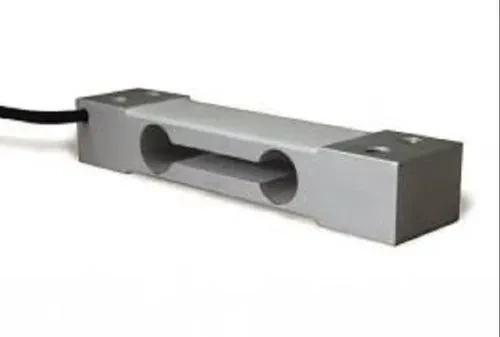

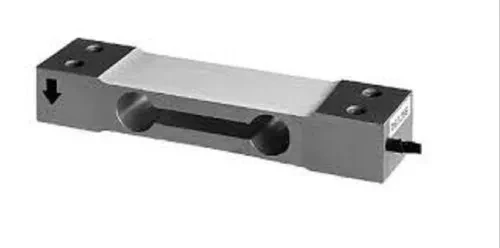

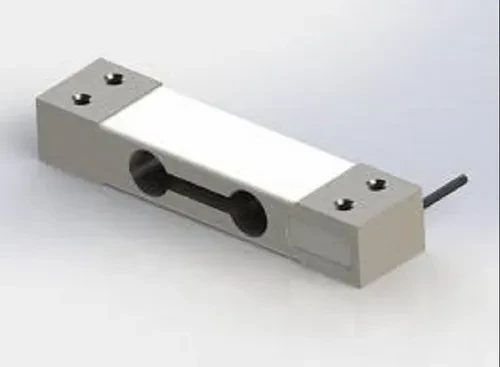

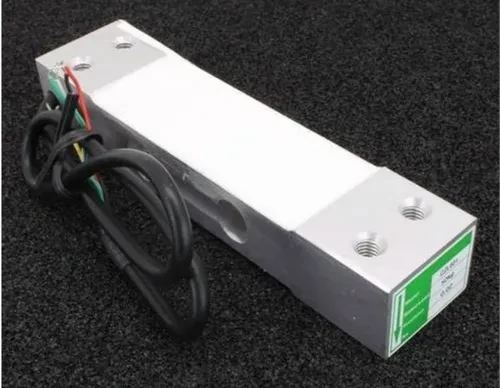

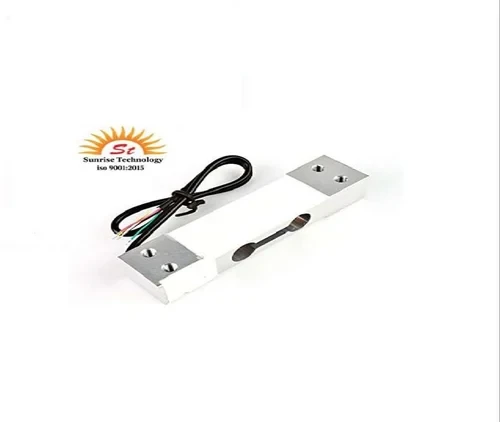

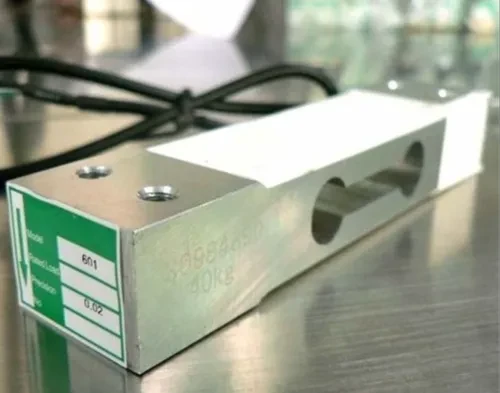

| CZL-646 B Green Label LOAD CELL |
Features:
Applications:
